Published September 6th, 2025 by The Fire Alarm Expert
Understanding fire alarm drawings doesn’t have to be intimidating, whether you’re a technician, installer, electrician, or just curious about fire alarm systems. In this guide, we’ll break down everything you need to know to interpret and utilize fire alarm plans effectively. From symbols and diagrams to wiring and device placement, we’ll cover it all so you can confidently install a fire alarm system with precision. Let’s dive in!
Fire alarm drawings are detailed plans that provide essential information for installing and programming fire alarm systems. They act as a roadmap, guiding you on device placement, wiring configurations, and compliance with local codes. These plans ensure the system operates correctly and meets safety standards, ultimately protecting lives and property in case of an emergency.
Breaking Down the Cover Page: Your Starting Point
The cover page of a fire alarm drawing is like the table of contents for the entire project. Here’s what you’ll typically find:
Drawing List: A breakdown of all the pages, depending on the project size.
Fire Alarm Symbols: Unique icons for devices like smoke detectors, horns, strobes, and more. Always check the fire alarm legend to understand these symbols.
Applicable Codes: The jurisdiction’s fire code and standards that must be followed.
General Notes: Instructions from the owner, engineer, or manufacturer about installation specifics.
Wire Types: Information on the cables required, such as 16 or 24 volts, and box sizes for different devices.
The legend provides a cheat sheet for interpreting symbols and abbreviations, such as:
It also specifies box codes, such as single gang boxes or deep 1900 boxes, and their uses for various devices. For example, a smoke detector might require a 4-inch round box or a standard 1900 box, depending on its base and mounting requirements.
When you move to the floor plans, you’ll see detailed layouts showing where to place devices like smoke detectors, horns, and strobes. Pay attention to:
Wire Routes: Direction and type of conduit required for each device.
End of Line (EOL) Indicators: Where the circuit ends and resistors are placed.
Device Addresses: Assigning unique identifiers to devices for programming and monitoring.
To maintain efficiency, run wires in a logical, continuous loop, avoiding unnecessary jumps between devices. This makes programming and troubleshooting easier later.

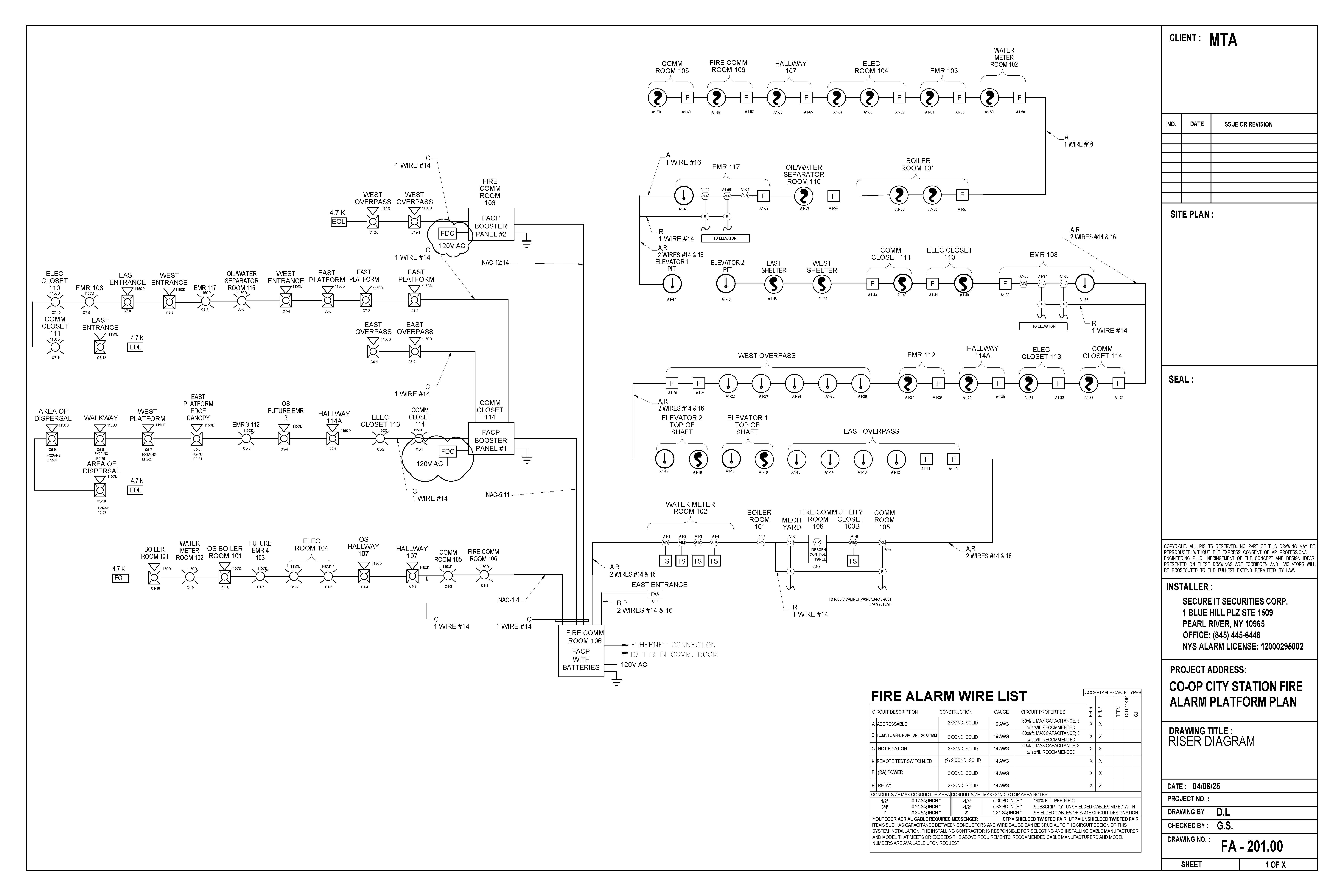

The one-line diagram is your go-to resource during installation. It shows the fire alarm control panel (FACP), how power and data cables branch out to devices, and where boosters, relays, and enunciators are connected. For example:
The FACP sends data and 24-volt power to multiple devices.
Boosters are used for high-power devices like horns and strobes, especially when their power draw exceeds the panel’s capacity.
Each circuit includes detailed information about the number of devices and their locations.
By studying the one-line diagram, you’ll understand how the system components interact and where to place everything with precision.
To ensure a smooth installation process, keep these tips in mind:
Follow the Drawings to the Letter: Device placement, mounting heights, and wiring must match the plans exactly.
Ask Questions: If you’re unsure about any detail, consult your foreman or project manager.
Stay Organized: Lay out all drawings on a large table to visualize the entire system clearly.
Account for Growth: Ensure the system has room for future expansion, as specified in the plans.
Remember, precision is key. A well-installed fire alarm system not only ensures safety but also makes programming and testing seamless for the technician.
Fire alarm drawings may seem overwhelming at first, but with the right approach and attention to detail, you can master them like a pro. From understanding symbols and wiring to interpreting diagrams, each step ensures a reliable and compliant system. If you’re ready to dive deeper into fire alarm systems, visit our training center for step-by-step tutorials and live guidance. Got questions? Drop them in the comments or reach out via our support link. Let’s make fire safety a priority together!
