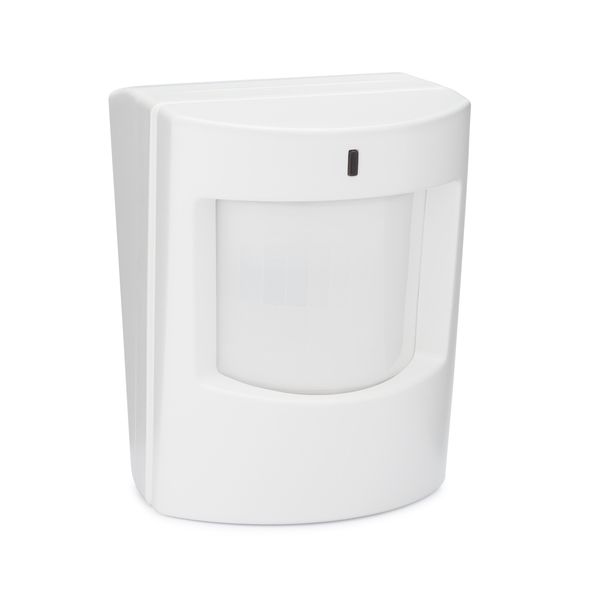

Qolsys IQ Motion-S Encrypted PIR True Motion Detection Sensor

• Encrypted S-Line sensor technology protects signals sent to the IQ Panel while still providing support for legacy 319.5 systems
• Provides security coverage up to 30’ in a large open area
• Use to create rules such as “When someone enters the room, turn on light” or “Trigger alarm when intruder detected”
• Pet immune up to 40 lbs
• Code outputs: paring, tamper, tamper restore, alarm detect motion, alarm restore, supervisory, low battery
• Transmitter frequency: 319.5MHZ +-15KHz
• Transmitter bandwidth: 24KHZ
• Modulation type: ASK-OOK
• RF output power 91.1dBuV +/- 5% at 3m
• Sensor Range 30 ft (9.1 m) x 40 ft (12.2 m)
• Maximum Horizontal Sensing Angle 80°
• Operating Temperature: -10?C~50?C
• Relative Humidity: 5-95%
• Non-Condensing Storage Temperature: -40?C to 80?C
